Oximo 50 IO 10/17

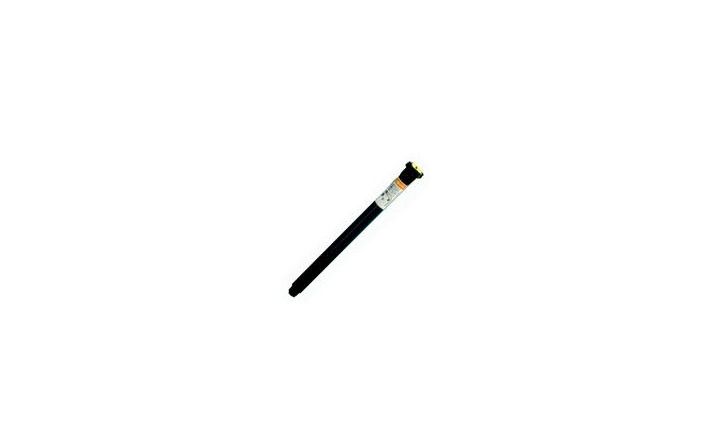

Somfy Oximo IO motor with 24kg pulling power

Series Oximo 50 io for roller shutters

• Tubular motor 230 V/50 Hz, with built-in high frequency receiver.
• Reception range: 20 meters through 2 concrete walls, can be doubled using a repeater.
• Simple wireless adjustment using remote control.
• Possibility to combine with wireless time clock (Impresario Chronis io).
• Automatic intermediate position pre-programmed as standard on the daylight position.
• One Oximo io tube motor can be operated wirelessly with up to 9 pieces of 1-way controllers and an infinite number of 2-way controllers.
• Not applicable with relay boxes, standard switches and standard controls.
• Fits into a pipe with a minimum inner diameter of 47 mm.
• Capacity of final adjustment: 136 revolutions. Operation time limited to 3 min.
• Supplied as standard with a white 3-wire (VVF) cord, length 5 m. Axial and radial cord outlet.
• Not suitable for continuous use.
