Orea RTS 30/17

(0 reviews)

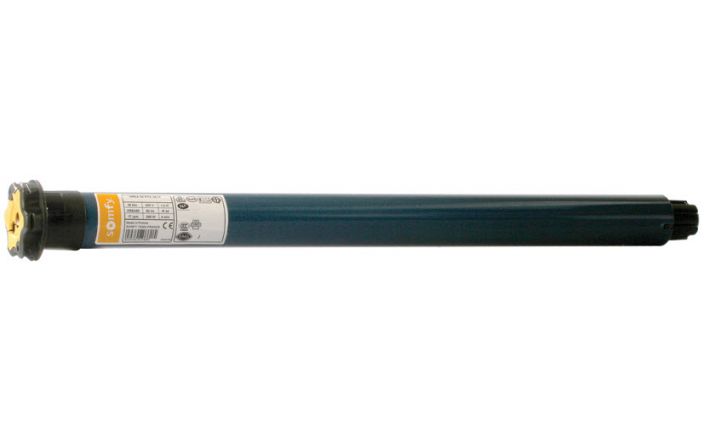

RTS tubular motor especially for cassette awnings (fabric is not visible when the awning is closed).

This motor has a tensile force of 30 Nm and a rotation speed of 17 revolutions per minute


  • Quick and easy adjustment and control with the remote control, such as the Situo RTS for example
  • Fabric stretch compensation: stretch in the fabric is automatically corrected so that the cassette always closes perfectly.
  • Automatic corrections to the set upper end position, based on mechanical stops (for example on the front rail of the cassette).
  • Retraction impulse: re-tension the fabric after each downward movement, adjustable using the transmitter.
minus plus
Calculating delivery date...
Kom je er niet uit?
Ma-vr van 9.00 tot 16.00
Neem contact met ons op
Browse to

Other features:

  • Feedback during programming operations (by moving end product).
  • Flexible and multifunctional system: easy addition, relocation and removal of wireless RTS control points.
  • Minimum cabling required with multiple end products.
  • Recommended RTS controls: Wireless sun and wind automatics Soliris Sensor RTS and Sunis Sensor RTS, Eolis 3D Sensor RTS and TaHoma Connect.
  • Complete series of tubular motors, series 50 and 60: 6 Nm up to 120 Nm.
  • Quick mounting by unique clip system.
  • Only for private use.

More Information
trekkracht motor 24 kg bij een 50 mm buis
Motor speed (rotations per minute) 17
voeding motor 230
Lengte motor 605 mm
motor vermogen 90 W
Werkingstijg motor 3 minuten
Max aantal omwentelingen motor 250
Motor cable length 5
Aantal draden motorkabel 3
